ROUND TUBES

EN 10219-1, EN 10219-2, EN 10305-5

AREAS OF APPLICATION
  1. Metal furniture
  2. Locking systems
  3. Light steel constructions
  4. Building constructions
  5. Agricultural machines and tools
  6. Manufacture of machines
  7. Wide applications

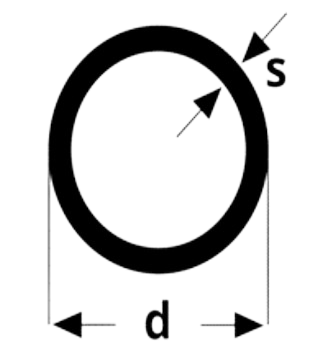

SHAPE

According to stated standards, the tubes have slightly rounded angles with standard performance in radius r=1.5s, and according to buyers request can be with radius of roundedness r=s (where “s” is the wall thickness)

BASIC MATERIAL
  • Cold mill steel band, according to European norm EN 10130/91 + A1/94, with thickness 1.0 to 2.0 ,,
  • Cold mill steel band, according to EN10111/98, and others according to EN 10025/91, with thickness 1.5 do 8mm
  • Content of Si: max 0.03% (suitable for galvanization)

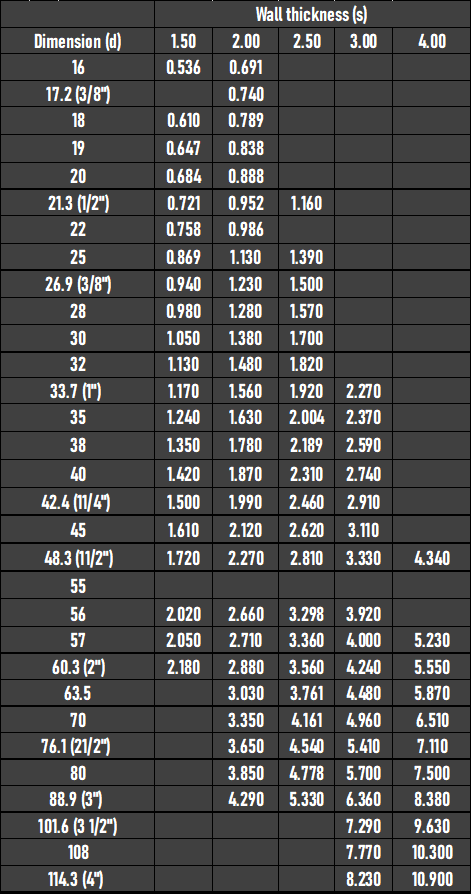

TABLE OF DIMENSIONS

STEEL GRADES:

S235JRH, S275JRH

S275J0H, S275J2H

S355J0H, S355J2H





LENGTHS: 4000-8500mm

OTHER LENGTHS AVAILABLE ON DEMAND

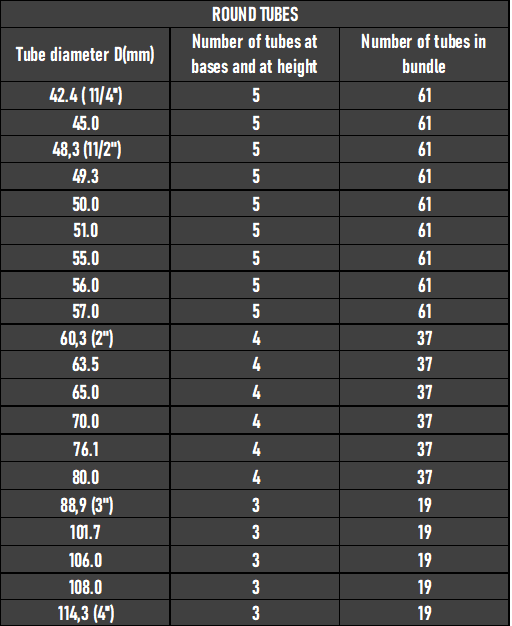

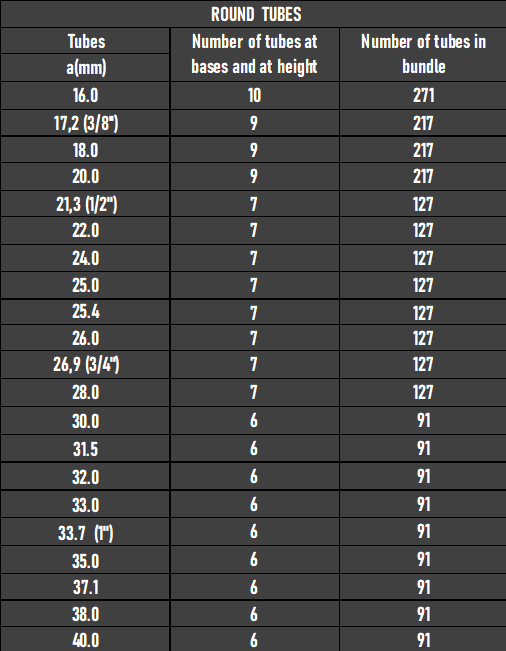

STANDARD TUBE PACKAGING
